Remote Control Components

The remote control has components that allow you to program and operate the light bulbs on your lighting network.

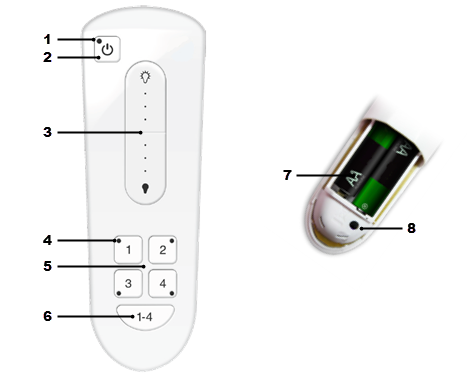

Picture of a remote control, front and back, with callout numbers to explain its parts. — Figure 1. Front and back of remote control

#	Component	Description
1	Power button indicator	Indicator that lights or flashes during different activities with the remote control. Indicators include: Green: Power on/off or dimmer command was successfully sent to the selected lighting group(s). Red: Power on/off or dimmer command failed. Indicator remains red for 3 seconds. Amber: Batteries are running low. Indicator flashes amber periodically.
2	Power button	Button that you press to turn on or off the lights in the selected lighting group(s). Lights turn on to the previous dimming level. Note: To turn on/off all network lights, regardless of lighting group, press and hold the power button for 3 seconds without first pressing the lighting group number button.
3	Dimmer control	Control that you press and hold to dim or brighten the lights in the selected lighting group(s). You do not have to press the power button first.
4	Lighting group number indicator	Indicator that lights or flashes during different activities with the corresponding lighting group. Indicators include: Green: Selected lighting group is activated for you to turn on/off, dim, or program. The lighting group remains activated (indicator remains green) for 5 seconds if you take no subsequent action. Red: Lighting group was not activated for you to take action. Indicator remains red for 3 seconds.
5	Group number button	Buttons that you press to select a corresponding lighting group to operate. Also use these buttons to program lights into the lighting group. CAUTION: Do not press and hold for longer than 4 seconds unless you are programming a lighting group.
6	Battery compartment	Compartment on the back that holds 2 AA batteries to power the remote control. When batteries run low, the indicator light on the power button periodically flashes amber.
7	Reset button	Button that you press to manage the remote control as follows: Press and release 3 times to connect the remote control to a lighting network that already exists (for example, if you are replacing a remote control). Press and hold for 10 seconds to reset the remote control and all lighting group programming on it. Warning: If you reset the remote control, you must reprogram all lighting groups on it.
